• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144093

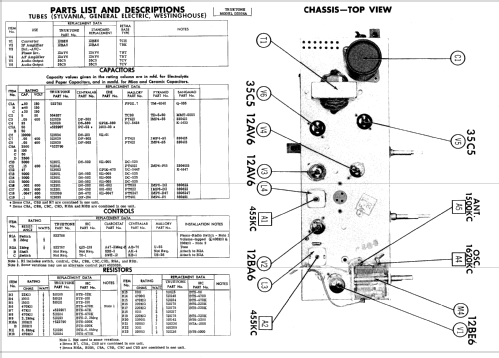

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BA6 12AV6 12AV6 35C5 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• from Radiomuseum.org
• Model: D2556A Truetone - Western Auto Supply Co.

• Shape
• Tablemodel, with any shape - general.

• Notes
• Diode Rectifier.
  The Western Auto Supply Model Truetone D2556A is an AC Operated Radio-Phono Combination Receiver with 3 Speed Automatic Record Changer.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-55, Set 274, Folder 14)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 901 models, 515 with images and 795 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Western Auto Supply Co. (Truetone); Kansas City (MO)
