• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332369

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 105 -125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Truetone D2586A - Western Auto Supply Co.

• Shape
• Book-shelf unit.

• Notes

• Truetone model D2586A is an AC-DC operated AM superheterodyne receiver.



• Literature/Schematics (1)

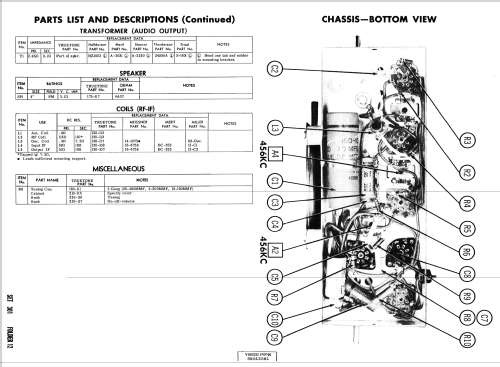

• Photofact Folder, Howard W. SAMS (Set 301 Folder 12 dated 12-55)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
