• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 318646

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC: 117=105-125 or Battery pack: 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Truetone D3789A - Western Auto Supply Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

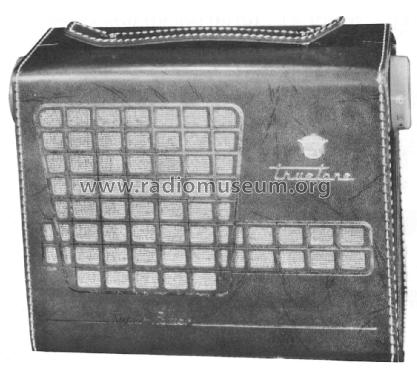

• Truetone model D3789A is a three power portable AM receiver.

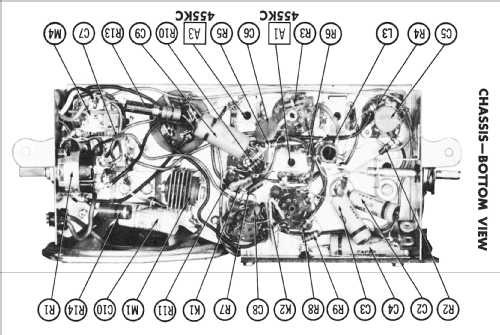

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 382 Folder 13 dated 12-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
