• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 196125

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 25L6GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Truetone D5773B - Western Auto Supply Co.

• Shape
• Tablemodel, with any shape - general.

• Notes

• Truetone model D5773B is an AC operated phono amplifier.Selenium rectifier.

• Literature/Schematics (1)

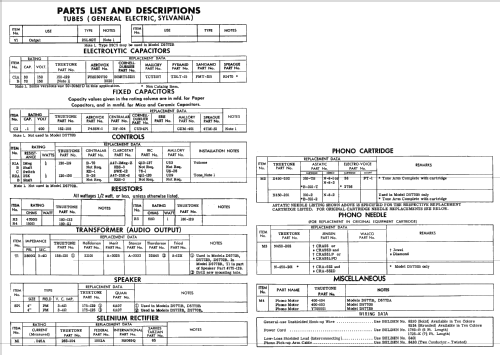

• Photofact Folder, Howard W. SAMS (Date 5-58, Set 399, Folder 14)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
