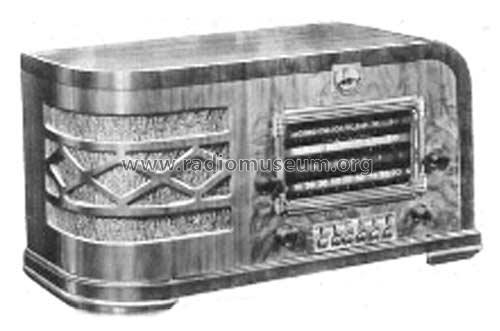

D727 Truetone early Mantle
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130257
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: D727 Truetone early [Mantle] - Western Auto Supply Co.
- Shape
- Tablemodel with Push Buttons.
- Notes
- Push-pull af output stage.
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Literature/Schematics (1)
- Riders 8-5, 6 (model S727)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
