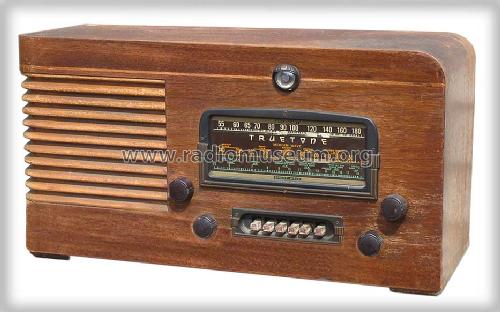

Truetone D-911B

Western Auto Supply Co. (Truetone); Kansas City (MO)

Data
Forum
Pictures
Collections

  • Year
  • 1943 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 355194

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Truetone D-911B - Western Auto Supply Co.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 22 x 11 x 9 inch / 559 x 279 x 229 mm
  • Notes

  • The "B" model of the Truetone D-911 has some tube changes from the original model.  The 6D6 changed to 6K7G and the 41's changed to 6N6G's.  The chassis was made by Detrola and their chassis number 314 is accurate except it shows additional circuitry for a phonograph player.

    Earlier model is the Truetone Supreme D-911.

    Some additional differences include:

     Model  Dial Escutcheon (dial) Escutcheon (push buttons)

    TV/PHONO switch & inputs (chassis rear)
    D-911 TRUETONE below 2nd band rectangular horizontal chevrons on the rectangular sides N
    D-911B TRUETONE below 1st band rectangular with raised features on the sides rectangular Y



  • Net weight (2.2 lb = 1 kg)
  • 21 lb (21 lb 0 oz) / 9.534 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Detrola Model 314)
  • Author
  • Model page created by Robert Uselton. See "Data change" for further contributors.
