DC5995 Truetone
Western Auto Supply Co. (Truetone); Kansas City (MO)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Auto Supply Co. (Truetone); Kansas City (MO)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 143038

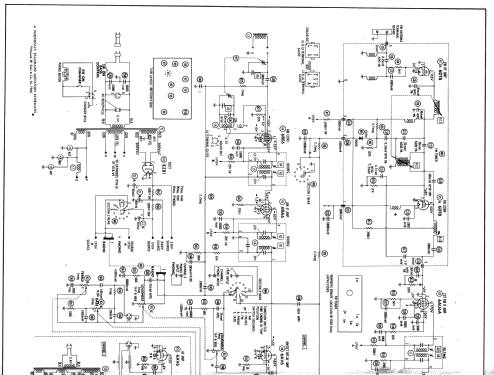

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: DC5995 Truetone - Western Auto Supply Co.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- AC operated FM - AM receiver, auxiliary amplifier and 4 speed automatic record changer. Sams photofact set 480 folder 16 date 4-60 features the Truetone models DC5993 and DC5995 as the same schematic.
- Literature/Schematics (1)

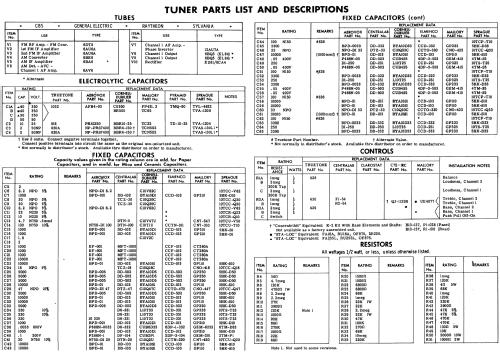

- Photofact Folder, Howard W. SAMS (Set 480 folder 16 date 4-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
