• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Coil & Electrical Co.; Racine, WI

• Year
• 1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66048

• • Brand: Radiodyne

• Number of Tubes
• 6

• Valves / Tubes
• UV199 or C299 UV199 or C299 UV199 or C299 UV199 or C299 UV199 or C299 UV199 or C299

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 3 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries

• Loudspeaker
• Horn

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiodyne WC12 - Western Coil & Electrical Co.;

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 24.5 x 15 x 11 inch / 622 x 381 x 279 mm

• Notes
• Three dials (primary tuning control knobs)

• Price in first year of sale
• 250.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)

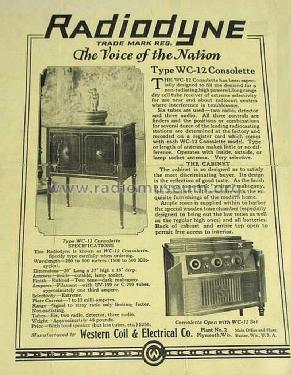

• March, 1925 Radio News magazine page 1663
