• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Coil & Electrical Co.; Racine, WI

• Year
• 1927 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206126

• • Brand: Radiodyne

• Number of Tubes
• 7

• Valves / Tubes
• UX226 UX226 UX226 UY227 unknown_Tube UX171A 80

• Main principle
• TRF without regeneration

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

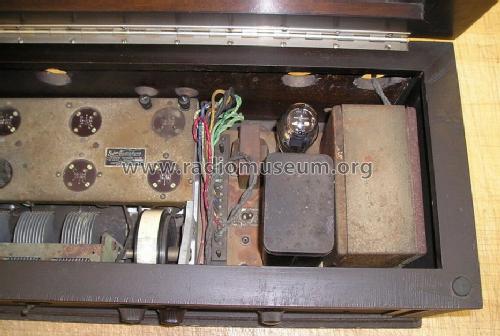

• Model: Super Radiodyne WC-23 - Western Coil & Electrical Co.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 24 x 10 x 11 inch / 610 x 254 x 279 mm

• Notes
• Western Coil & Electric Super Radiodyne WC-23 receiver.

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
