• Country
• Great Britain (UK)

• Manufacturer / Brand
• Western Electric Co. Ltd.; London

• Year
• 1925 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162121

• Number of Tubes
• 5

• Valves / Tubes
• 215A 215A 215A 215A 215A

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 60 & 45 & 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Unknown 5 Wecovalves - Western Electric Co. Ltd.;

• Shape

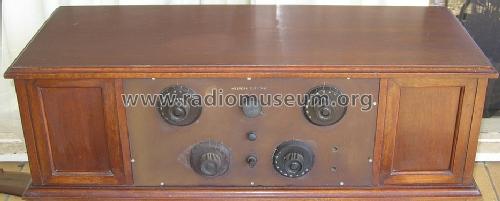

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 805 x 250 x 337 mm / 31.7 x 9.8 x 13.3 inch

• Notes

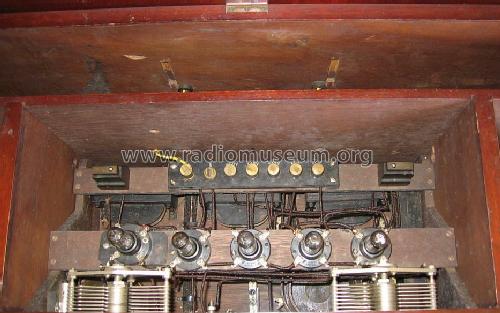

• Last two valves are connected in parallel. Filaments of all valves are connected in series. Looks very similar to the STC S-160. Western Electric changed to STC in 1925.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
