• Country
• Australia

• Manufacturer / Brand
• Westinghouse (brand), Sydney

• Year
• 1961/1962

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 300457

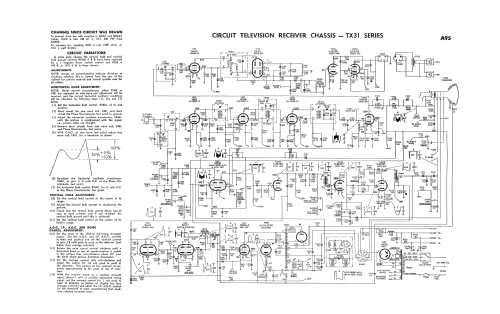

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6ES8 6EA8 6AU6 6AL5 6BV7 6BZ6 6CB6 6CB6 6EB8 6BU8 6EM7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 19AKP4

• Number of Transistors

• Semiconductors
• GD3 M3

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 190-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: W1928S - Westinghouse brand, Sydney

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 23.125 x 32.875 x 13.625 inch / 587 x 835 x 346 mm

• Notes

• Rebadged AWA D7S

  Height given includes legs of 12".

  Cabinet finishes available in Walnut, Maple & Mahogany.

• Price in first year of sale
• 156.45 AUS £

• Literature/Schematics (1)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962, Page A95.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
