- Country
- Australia
- Manufacturer / Brand
- Westinghouse (brand), Sydney
- Year
- 1958/1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 290479

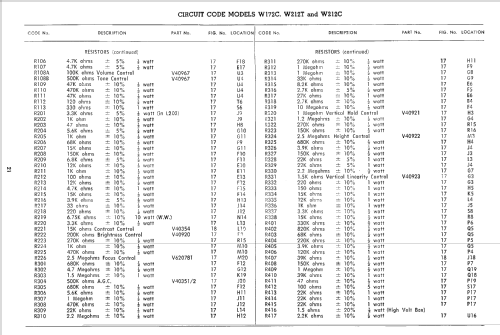

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6CQ8 6CB6 6U8 6U8 12BY7 6AU6 6AL5 6BV7 6SN7GTA 6AQ5 6SN7GTA 6DQ6A 6AX4GT 1B3GT 5AS4 21ALP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: W212C - Westinghouse brand, Sydney
- Shape
- Console with any shape - in general
- Notes
-
Westinghouse Model W212C
A 21" full-skirt console TV receiver with concealed Sherperd castors; 90° aluminised electrostatic-focus tube (21ALP4A) plus 16 valves.
Features: Aerial input 300Ω; switched tuner with cascode circuit receives 10 channels; three-stage video IF amplifier, high level contrast control; peak level AGC; stabilised vertical control; AFC horiz. hold, "Auto-lock" sync. Audio output 3W. Speakers: 9" x 6" and 7" x 5". power consumption 180W. Aerial panel mounted on chassis.
Operating controls: channel selector/fine tuning, tone/on-off/volume, brightness, contrast and vertical hold. Technicians' controls; height, vertical linearity, horiz. hold (screwdriver adjustments under front trim), horiz. drive, horiz. linearity, width, AGC and focus (rear chassis).
Cabinet finishes: walnut, rosewood, maple. (MINGAY'S PRICE SERVICE)
See also AWA model 212C & Airzone model A212C.
- Price in first year of sale
- 229.95 AUS £
- Mentioned in
- Mingay's Price Service (Nov 1959 to Feb 1959.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Westinghouse Technical and Service Data, March 1958.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A83 (for AWA 212C).)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
