- Country
- Australia
- Manufacturer / Brand
- Westinghouse (brand), Sydney
- Year
- 1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 287642

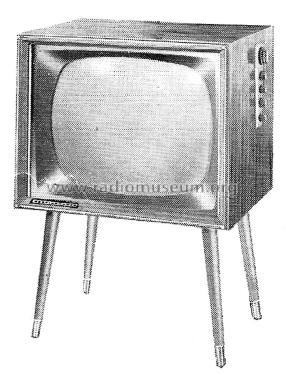

From Westinghouse service manual.
- Number of Tubes
- 16
- Valves / Tubes
- 6BQ7A 6CQ8 6AU6 6AL5 6BV7 6BZ6 6CB6 6CB6 6AW8A 6CG7 6EM5 6CG7 6DQ6A 6AU4GTA 1B3GT 21CEP4
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 190-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: W218T - Westinghouse brand, Sydney
- Shape
- Console with any shape - in general
- Notes
-
Rebadged version of AWA 231. Slight differences in cabinet styling, but otherwise identical.
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Factory Supervised Service for models W218T & W218C)
- Literature/Schematics (2)
- -- Schematic (J.R. Publications Television Service Handbook L.J. Series Vol. 1, 1962, Page A86.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
