W2316 Ch= T31A
Westinghouse (brand), Sydney
- Country
- Australia
- Manufacturer / Brand
- Westinghouse (brand), Sydney
- Year
- 1961
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 287904

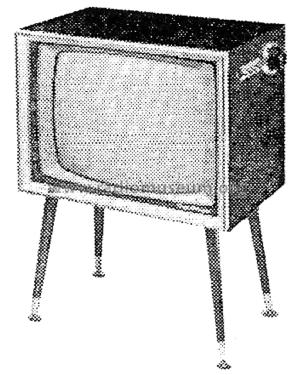

Image from Westinghouse W2316 model sheet.
- Number of Tubes
- 0
- Valves / Tubes
- 6ES8 6EA8 6AU6 6AL5 6BV7 6BZ6 6CB6 6CB6 6EB8 6BU8 6EM7 6CG7 6DQ6A 6AU4GTA 1B3GT 5AS4 23MP4
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 190-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: W2316 Ch= T31A - Westinghouse brand, Sydney
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Rebadged version of AWA D1. Slight differences in cabinet styling, but otherwise identical.
Cabinet finishes available in Walnut, Maple & Mahogany.
- Price in first year of sale
- 177.45 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Factory Supervised Service for T31 Series chassis.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A93.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
