- Country
- Australia
- Manufacturer / Brand
- Westinghouse (brand), Sydney
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286604
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

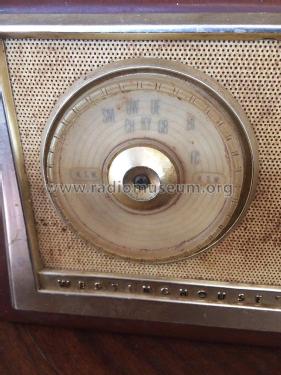

- Model: W603P - Westinghouse brand, Sydney
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 6.25 x 8.5 x 3 inch / 159 x 216 x 76 mm
- Notes
-
Rebadged version of AWA 694P and is otherwise identical.

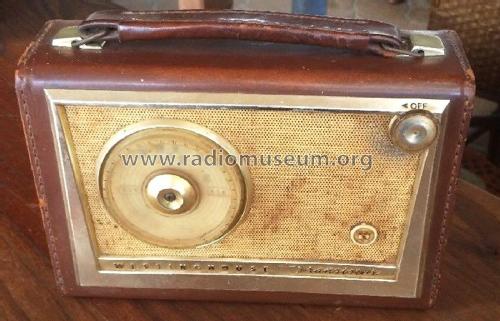

Leather case in Pigskin, Manly Tan & Saddle Tan.
- Net weight (2.2 lb = 1 kg)
- 3 lb 0 oz (3 lb) / 1.362 kg
- Price in first year of sale
- 37.80 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Factory Supervised Service.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960, Page A9-A (for AWA 694P).)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
