• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 147857

• • alternative name: Westinghouse El. Int.

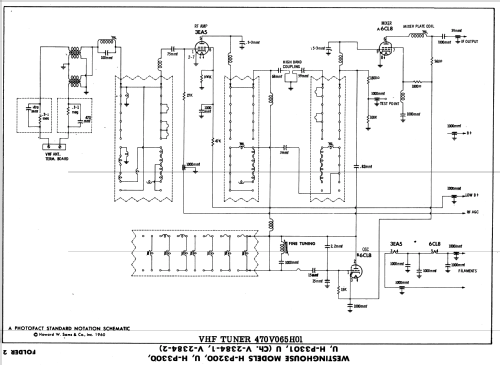

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 3EA5 6CL8A 4BZ6 4BZ6 4CB6 8AW8A 6FV8 4DT6 6AQ5A 8CS7 8CG7 17DQ6A 17D4 1G3GT 17DHP4

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: H-P3300U Ch= V-2384-2 - Westinghouse El. & Mfg. Co. -

• Notes
• Channels 2 thru 13 VHF, 14 thru 83 UHF. Sams photofact set 485 folder 2 date 5-60 features the Westinghouse models H-P3200, H-P3300, H-P3301 with chassis V-2384-1 and the models H-P3200U, H-P3300U, H-3301U with chassis V-2384-2 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 485 folder 2 date 5-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
