- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125730
-
- alternative name: Westinghouse El. Int.

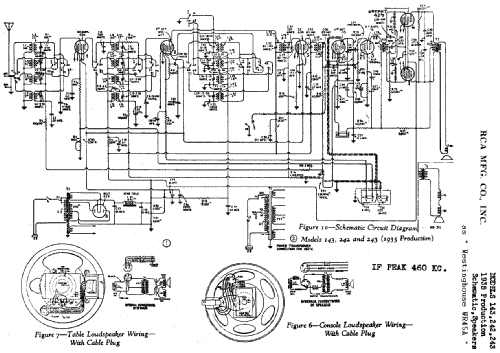

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: WR45A - Westinghouse El. & Mfg. Co. -
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 430 x 500 x 320 mm / 16.9 x 19.7 x 12.6 inch
- Notes
- similar to RCA model 143, 1935 production (see Riders).
- Source of data
- - - Data from my own collection
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (see RCA 143)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (see RCA 6-45)
- Author
- Model page created by Julio Amador-Vazquez. See "Data change" for further contributors.
