Seven Transistor H-602P7 Ch= V-2295-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Données

Forum

Images

Collections

Pays
Etats-Unis

Fabricant / Marque
Westinghouse El. & Mfg. Co. - see also Canadian W.

Année
1956 ?

Catégorie
Radio - ou tuner d'après la guerre 1939-45

Radiomuseum.org ID
83477

- alternative name: Westinghouse El. Int.

Images
Schémas

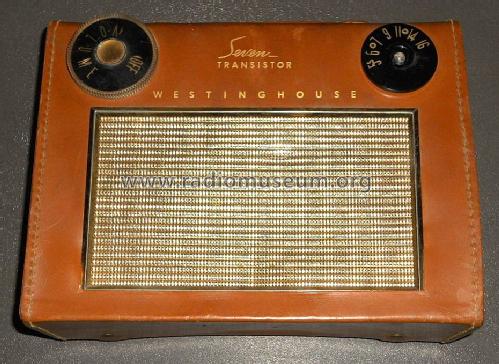

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 134812) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (3)

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588688) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

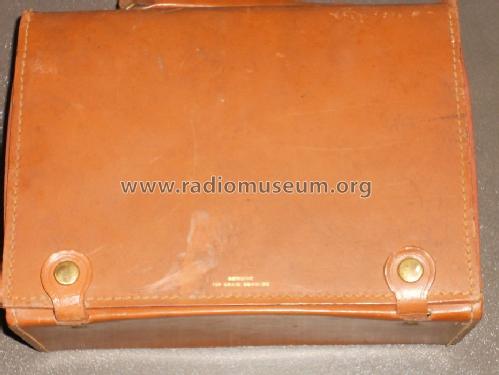

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588677) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588684) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

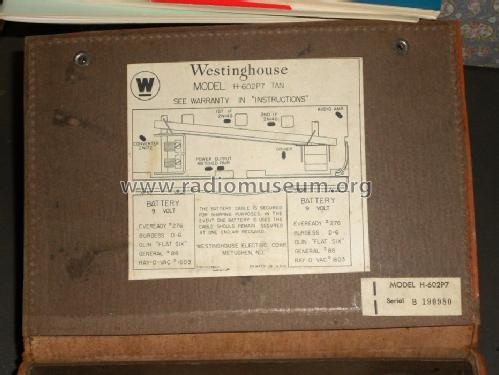

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588675) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588676) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

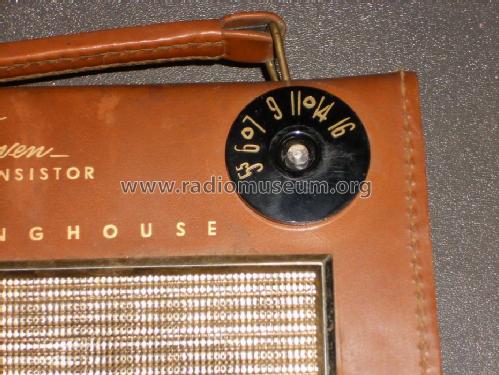

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588679) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588681) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588683) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588685) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588686) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588687) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:251346184607

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588689) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number:380248161215

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588690) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number: 310335275679

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 1588697) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
eBay item number: 310335275679

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 2616683) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
ebay.com_274667375243 seller rrisner

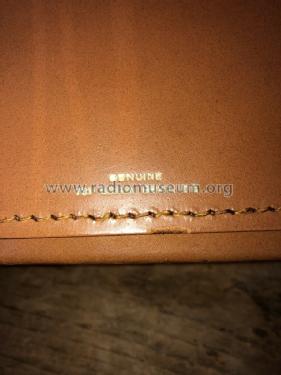

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 2616684) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
ebay.com_274667375243 seller rrisner

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 2616685) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
ebay.com_274667375243 seller rrisner

Seven Transistor H-602P7 Ch= V-2295-1; Westinghouse El. & (ID = 2616686) Radio — Westinghouse El. & Seven Transistor H-602P7 Ch= V-2295-1 (2)
ebay.com_274667375243 seller rrisner

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

Spécifications techniques

No. de transistors
7

Semi-conducteurs
2N172 2N146 or. 2N145 2N146 or. 2N147 2N217 2N217 2N217 2N217 1N87G

Principe général
Super hétérodyne (en général); FI/IF 455 kHz; 3 Etage(s) BF

Circuits accordés
5 Circuits MA (AM)

Gammes d'ondes
PO uniquement

Tension / type courant
Piles (rechargeables ou/et sèches) / PP9: 2 x 9 Volt

Haut-parleur
HP dynamique oval à aimant permanent

Puissance de sortie
0.15 W (0.3 W max.)

Matière
Cuir / canvas / plastique mais autre matériel en dessous!

De Radiomuseum.org
Modèle: Seven Transistor H-602P7 Ch= V-2295-1 - Westinghouse El. & Mfg. Co. -

Forme
Portative > 20 cm (sans nécessité secteur)

Dimensions (LHP)
9.5 x 7.5 x 4 inch / 241 x 191 x 102 mm

Remarques
The Westinghouse H-602P7 has the following features:
- Frequency range: 540 - 1600 kHz.
- Model uses two 9 V batteries (PP9) connected in parallel.
- Minimum current drain (no signal, volume set to min.): 9.5 mA.
- Average current drain: 25 mA.
- Speaker: 4" x 6" elliptical.
This radio was one of the first transistor radios from Westinghouse.

Source du schéma
Beitman Radio Diagrams Vol. 17, 1957

Littérature
Collector's Guide To TrR1 Bunis trans.94 (1996, page 299)

Schémathèque (1)
- - Manufacturers Literature (Westinghouse Service Manual Model 602P7 Chassis V-2295-1, RM4219 9-56)

Schémathèque (2)
Transistor Radios (1994 Lane, page 121)

Schémathèque (3)
Transistor Radios 1954-68 (page 59 (photo))

Auteur
Modèle crée par Egon Penker. Voir les propositions de modification pour les contributeurs supplémentaires.
