8 Transistor RG-11P28A (Japan 206)
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1964 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245274
-
- alternative name: Westinghouse El. Int.
152928257023 seller 23 freedom
ebay 312471804285 jarthurme
eBay item number:314803396813
eBay item number:314803396813
eBay item number:314803396813
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 0.15 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 8 Transistor RG-11P28A - Westinghouse El. & Mfg. Co. -
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 3 x 1.5 x 3 inch / 76 x 38 x 76 mm
- Notes
-

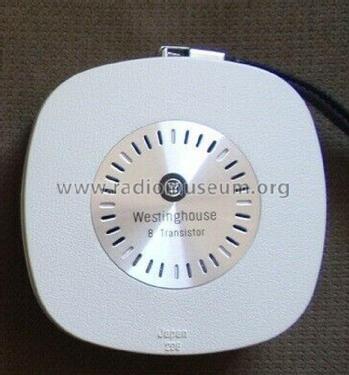

Westinghouse 8 Transistor Radio Model RG-11P28A
Earphone, Wrist Strap, Brocade Pouch that can be used as a small evening bag,Made in Japan 206
- Net weight (2.2 lb = 1 kg)
- 0.120 kg / 0 lb 4.2 oz (0.264 lb)
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 306)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
