"Little Jewel" "Refrigerator" H127 ; maroon

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66213

• • alternative name: Westinghouse El. Int.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SF7 12SJ7 35A5 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: "Little Jewel" "Refrigerator" H127 ; maroon - Westinghouse El. & Mfg. Co. -

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 5.9 x 9.4 x 5.9 inch / 150 x 239 x 150 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

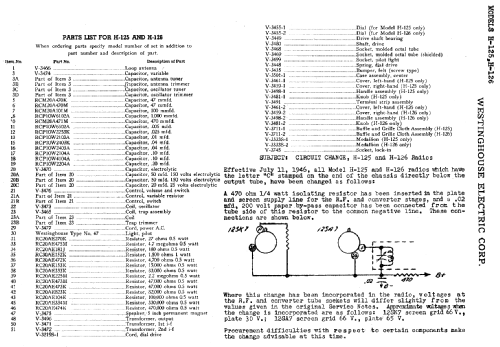

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Other Models

• Here you find 3132 models, 1747 with images and 2645 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
