H-185 Ch= V-2131
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77686
-
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 105-125/ 67.5 & 7.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.02 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

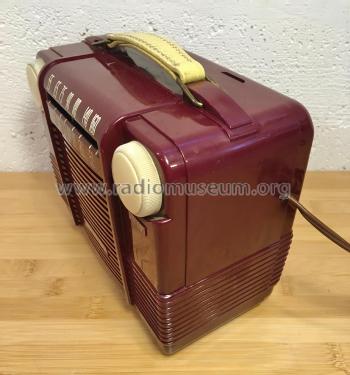

- Model: H-185 Ch= V-2131 - Westinghouse El. & Mfg. Co. -
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8.75 x 7 x 5 inch / 222 x 178 x 127 mm
- Notes
- Selenium Rectifier
- Source of data
- Beitman Radio Diagrams, Vol. 09, 1949
- Circuit diagram reference
- Rider's Perpetual, Volume 18 = 1949 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 54, Folder 20)
- Author
- Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
