• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188580

• • alternative name: Westinghouse El. Int.

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12DT8 12BA6 12BA6 12AV6 50C5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

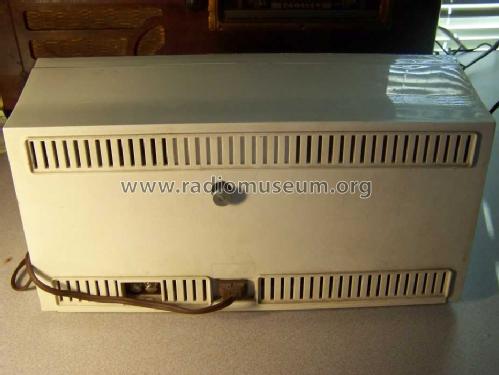

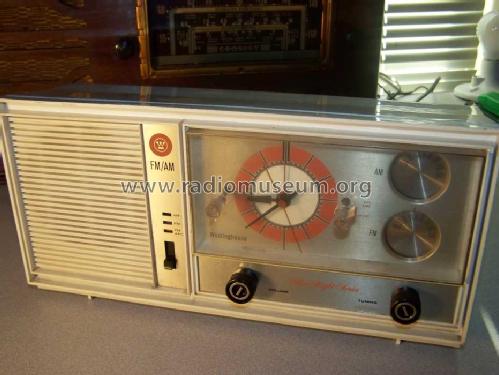

• Model: H915LN6 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 6.5 x 4.5 inch / 318 x 165 x 114 mm

• Notes
• Honey Beige / Oxford White.

• Author
• Model page created by John Backscheider. See "Data change" for further contributors.
