H-104AC6 Ch= V-2508-17
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1964
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 216351
-
- alternative name: Westinghouse El. Int.

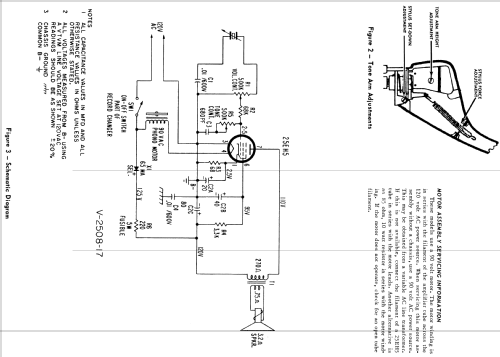

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 25EH5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: H-104AC6 Ch= V-2508-17 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Westinghouse Model H-104AC6 is a portable AC Operated 1 Tube Mono Amplifier with 4 Speed Automatic Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Charcoal Blue. Uses Record Changer 670V034H01, with speeds of 16, 33, 45 and 78 RPM. Has Selenium Rectifier. Turntable uses a 90V motor, with motor winding in series with 25EH5 tube filament. Westinghouse models H-104AC1, H-104AC1A, H-104AC2 and H-104AC2A use the same chassis and schematic, the difference being cabinet color and Record Changers.
- Literature/Schematics (1)

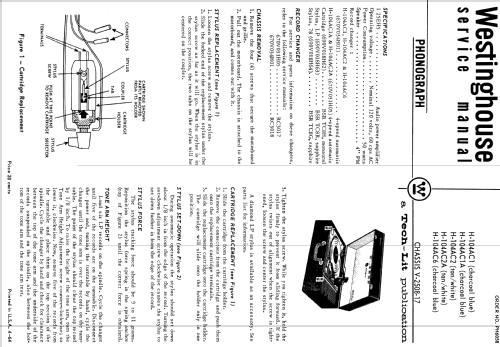

- - - Manufacturers Literature (Westinghouse Datasheet PH6058)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
