- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1945 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137814
-
- alternative name: Westinghouse El. Int.
Sams photofact.

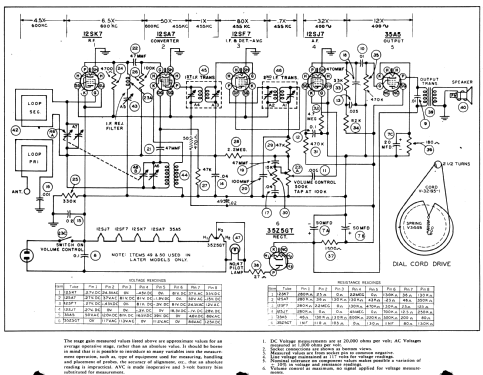

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: H-1251 - Westinghouse El. & Mfg. Co. -
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Notes
- Sams photofact folder, 463-19, date 8-46, features the Westinghouse models H-125, H-126 and H-1251 as the same schematic.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Folder 463-19 date 8-46)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
