- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1947 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 236944
-
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
- Power out
- 1.1 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

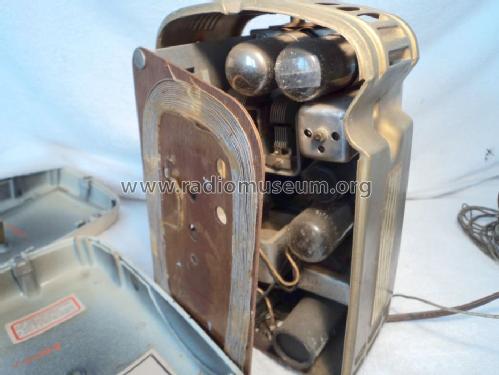

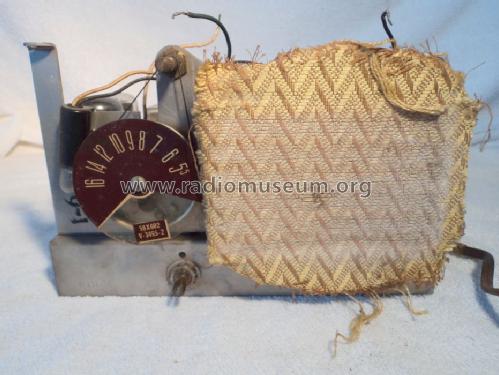

- Model: H-134 - Westinghouse El. & Mfg. Co. -
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 140 x 235 x 152 mm / 5.5 x 9.3 x 6 inch
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Author
- Model page created by Carlos Alves. See "Data change" for further contributors.
- Other Models
-
Here you find 3132 models, 1748 with images and 2646 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Westinghouse El. &: H-134
Threads: 1 | Posts: 1
Hi,

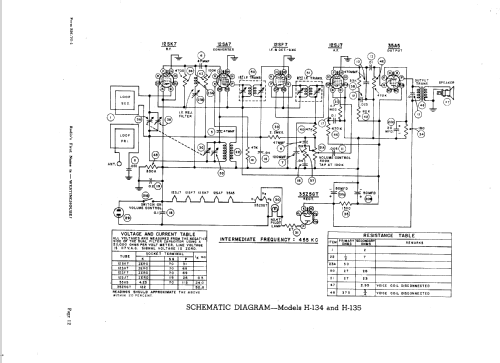

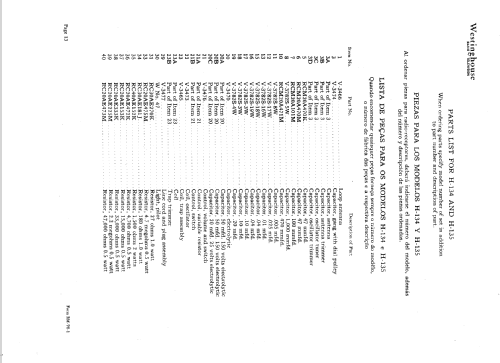

I just uploaded schematic with notes and connection missing corrected:
Added a locator for R and C by one list in the upper side of page to help find components
Added chasis connection for variable condenser that is missing in the original schematics
Added pins numbers on series filaments
Highlighted lines for -B (it is not at chasis) and +B
Added notes for tips and hints
Hope this is now more clear to follow schematics
Regards
Vicente - Sevilla - Spain
Vicente Moncholi-Cebrian, 26.Mar.24
