H-17C287 Ch= V-2365-11

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 187946

• • alternative name: Westinghouse El. Int.

• Picture
• Schematics

Previous Next

Previous Next

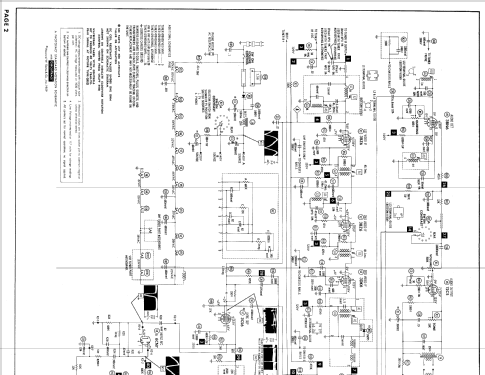

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 17CFP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H-17C287 Ch= V-2365-11 - Westinghouse El. & Mfg. Co. -

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• 17" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF. Tubes UHF: 17.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-59, Set 446, Folder 2)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 3132 models, 1748 with images and 2646 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
