H-406P5 Green Ch= V-2156-2

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92615

• • alternative name: Westinghouse El. Int.

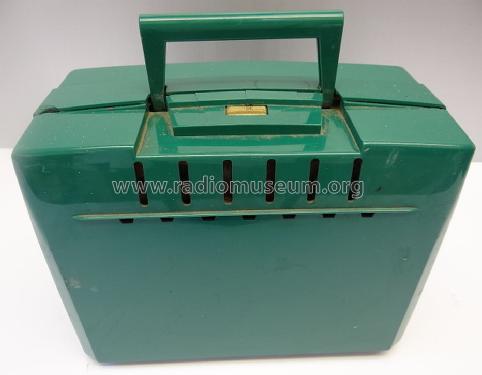

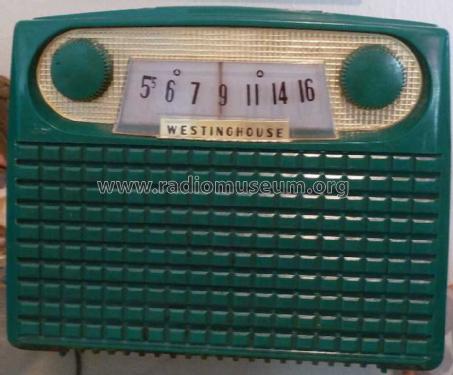

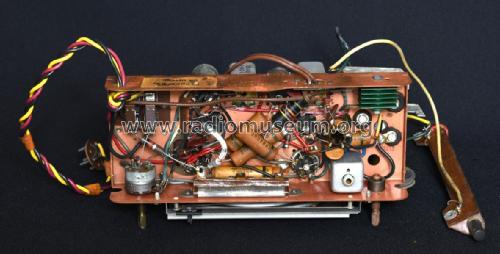

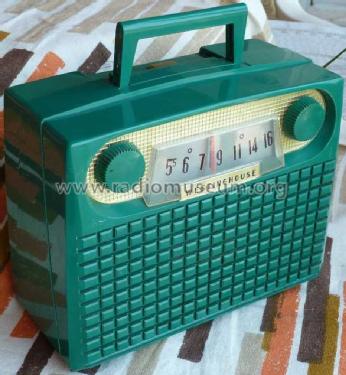

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117; AC;DC;90;9. Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-406P5 Green Ch= V-2156-2 - Westinghouse El. & Mfg. Co. -

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 8 x 5.5 inch / 254 x 203 x 140 mm

• Notes

• Westinghouse  5 Tube AM Radio Model H-405P5 Red.
  Power Consumption 15 Watts.
  Selenium Rectifier.
  See also Westinghouse 5 Tube AM Radio Model H-406P5 Green.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 14, 1954

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
