H-448T4 Ch= V-2184-4

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 81225
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: H-448T4 Ch= V-2184-4 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 7.5 x 5.5 x 5.1 inch / 191 x 140 x 130 mm
  • Notes

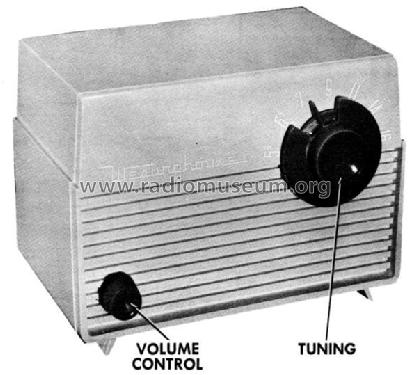

  • The Westinghouse H-448T4 is an AC/DC operated 4 tube BC band receiver.  The BC band range is 540 to 1625kHz.  Has built-in loop antenna mounted on rear of cabinet and provisions to connect an external antenna. Cabinet color is Gray.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    H-447T4 Brown
    H-448T4 Gray
    H-449T4 Aqua



  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
