• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81228

• • alternative name: Westinghouse El. Int.

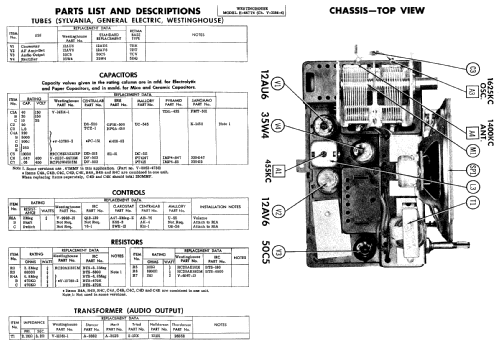

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-449T4 Ch= V-2184-4 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7.5 x 5.5 x 5.1 inch / 191 x 140 x 130 mm

• Notes

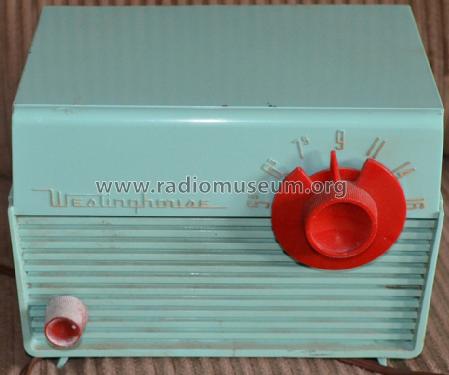

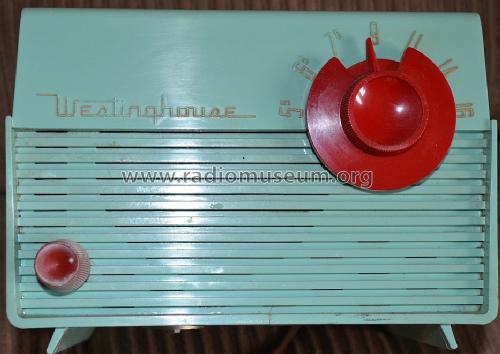

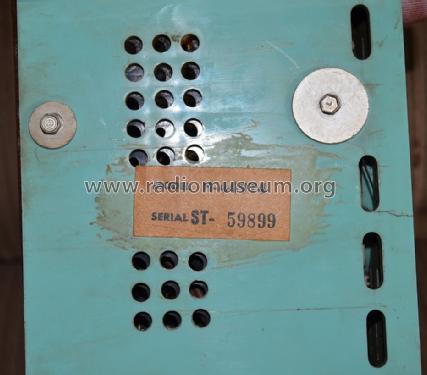

• The Westinghouse H-449T4 is an AC/DC operated 4 tube BC band receiver.  The BC band range is 540 to 1625kHz.  Has built-in loop antenna mounted on rear of cabinet and provisions to connect an external antenna. Cabinet color is Aqua.

  The following models use the same schematic and cabinet but have different cabinet colors:

  Model Number	Cabinet Color
  H-447T4	Brown
  H-448T4	Gray
  H-449T4	Aqua



• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 4-55, Set 274, Folder 15)

• Literature/Schematics (2)
• Beitman Radio Diagrams, Vol. 15, 1955 (Page 111)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.

• Other Models

• Here you find 3132 models, 1748 with images and 2646 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
