• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 138954

• • alternative name: Westinghouse El. Int.

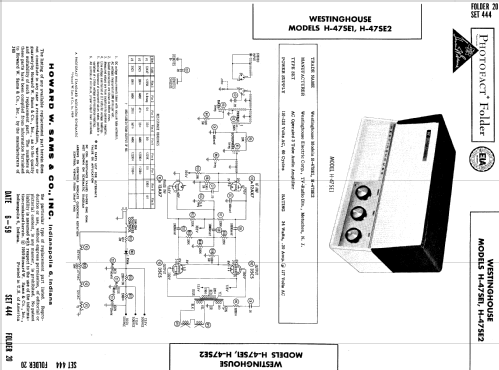

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 35C5 35C5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker

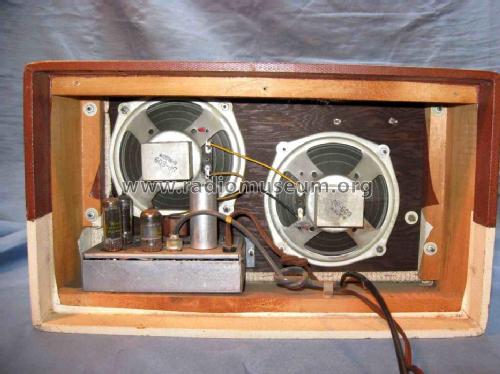

• 2 Loudspeakers / Ø 6 inch = 15.2 cm

• from Radiomuseum.org

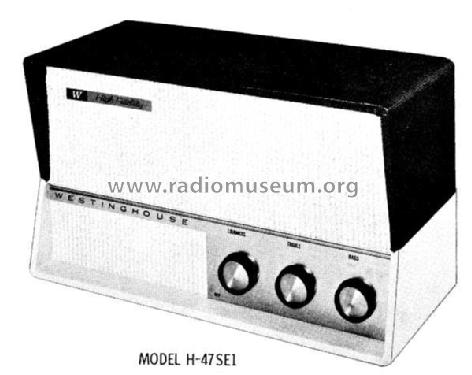

• Model: H-47SE1 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, low profile (big size).

• Notes
• Selenium Rectifier.

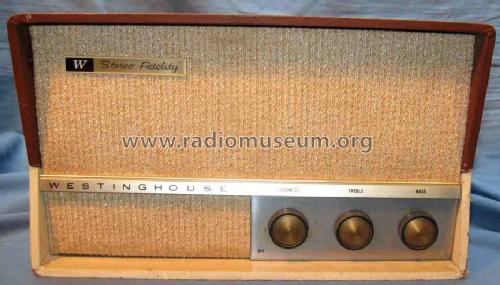

  The Westinghouse Model H-47SE1 is an AC Operated 3 Tube Amplifier.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-59, Set 444, Folder 20)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
