• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81229

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

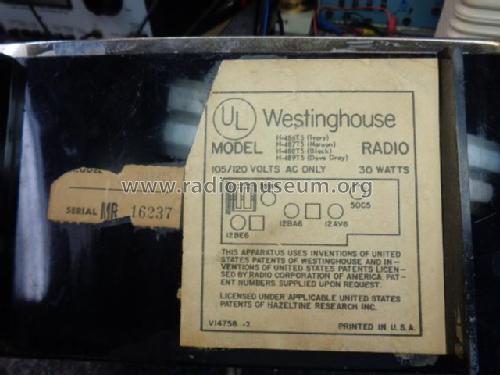

• Model: H-488T5 Ch=V-2236-2 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Color Black

• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 7-55, Set 282, Folder 16)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
