• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81224

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Power type and voltage
• Storage and/or dry batteries / 1.5/67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: H-494P4 Ch=V-2185-2 - Westinghouse El. & Mfg. Co. -

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• H-494P4 is med.green; H-495-P4 is gray-green; H-496P4 is red; and H-497P4 is black.

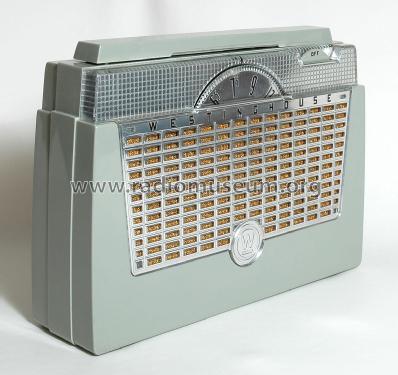

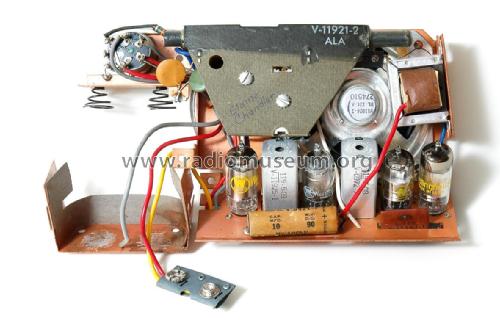

  Westinghouse model H-494P4 is a battery operated portable AM superheterodyne receiver.

• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 292 Folder 11 dated 10-55)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
