H-633C17 Ch= V-2173

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1950 ?
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 216901
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 27
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 2.8 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: H-633C17 Ch= V-2173 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

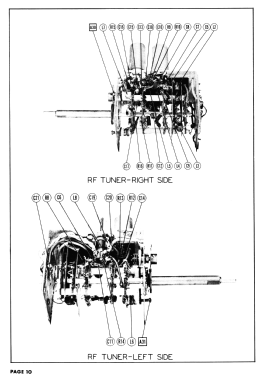

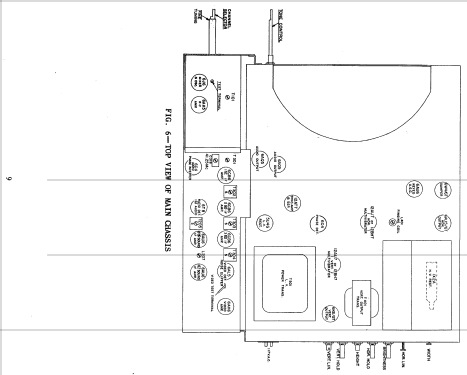

  • The Westinghouse H-633C17 is a combination 17" b/w Television, AM/FM receiver, Audio Amplifier, Record Changer and Speaker. The TV is equipped with US standard VHF tuner channels 2 thru 13 and has 17AP4 picture tube. AM tuning range is 540 to 1600 kHz, FM tuning range is 88 to 108 MHz. The main V-2173 chassis consists of 3 sub-chassis: V-2158-3A is the IF chassis, V-2162-4 is the sweep chassis and the V-2163 is the AM/FM Tuner chassis. Uses Record Changer V-9840. Cabinet is Mahogany. Westinghouse model H-634C17 uses the same chassis and schematic, the difference being the cabinet.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet RM3186)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
