H-652K20 Ch= V-2201-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1951 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
217081

- alternative name: Westinghouse El. Int.

Schematics

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3079576) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3079577) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005391) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005392) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005393) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005394) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005395) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005396) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005397) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005398) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005399) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005400) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005401) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005402) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005403) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

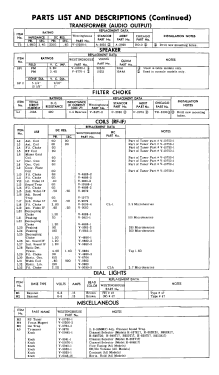

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 3005404) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211549) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211550) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211551) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211552) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211553) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211554) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211555) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211556) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211557) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211558) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211559) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211560) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211561) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

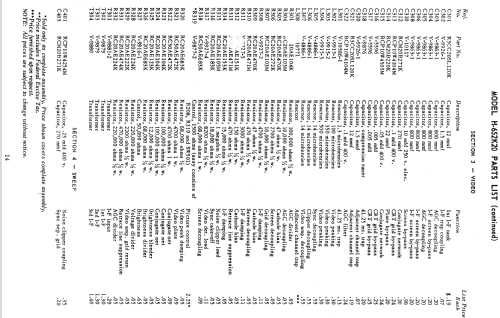

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211562) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (3)

H-652K20 Ch= V-2201-1; Westinghouse El. & (ID = 1211547) Television — Westinghouse El. & H-652K20 Ch= V-2201-1 (2)
Picture from Westinghouse datasheet

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
22

Valves / Tubes
6AK5 6J6 6CB6 6CB6 6CB6 6AL5 6AC7 or 6AH6 6AU6 6AU6 6AU6 6T8 6W6 12AT7 6SN7GT 6V6GT 6C4 12AU7 6AU5 6W4GT 1B3GT 5U4G 20DP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Power out
1.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: H-652K20 Ch= V-2201-1 - Westinghouse El. & Mfg. Co. -

Shape
Console, Lowboy (legs < 50 %).

Notes
The Westinghouse H-652K20 is a 20" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2201-1, VHF-tuner V-10750-1 and picture tube 20DP4. For service information, refer the supplement #1 and #2 to the model H-652K20 service notes.

Literature/Schematics (1)
- - Manufacturers Literature (Westinghouse Datasheets RM3243, RM3271, RM3230)

Literature/Schematics (2)

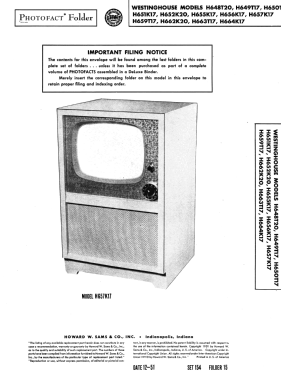

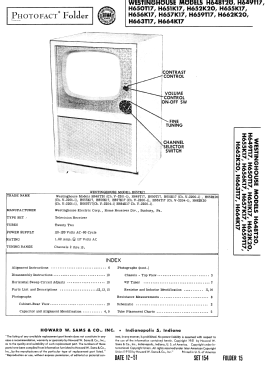

Photofact Folder, Howard W. SAMS (Set 154, folder 15, dated 12-51)

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 176, folder 1, dated 8-52)

Author
Model page created by John Kusching. See "Data change" for further contributors.
