• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72321

• • alternative name: Westinghouse El. Int.

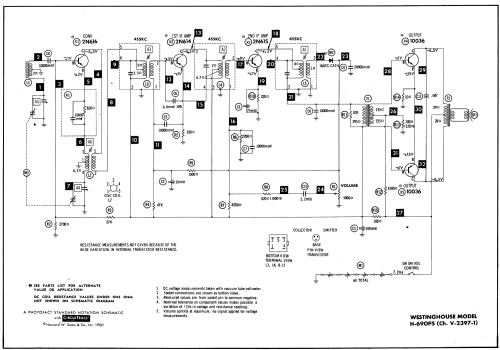

Click on the schematic thumbnail to request the schematic as a free document.

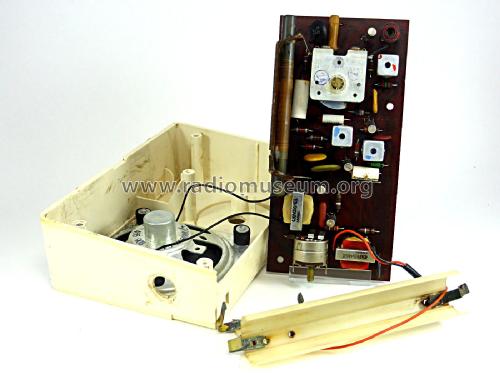

• Number of Transistors

• Semiconductors
• 2N412 2N410 2N410 2N409 2N409

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

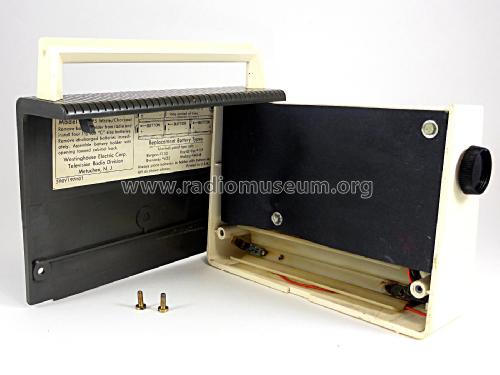

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

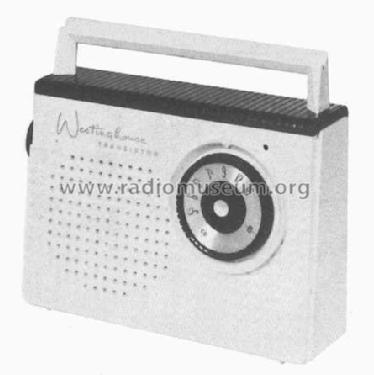

• Model: H-690P5 Ch= V-2397-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7.75 x 6.75 x 2.75 inch / 197 x 171 x 70 mm

• Notes
• 1Diode= 1N87G

• Net weight (2.2 lb = 1 kg)
• 1 lb 10 oz (1.625 lb) / 0.738 kg

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Mentioned in
• Bunis, Transistor Radios, 2nd ed., p. 301

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 477 folder 14date 3-60)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
