• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78898

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-704T5 Ch= V-2398-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The Westinghouse model H-704T5 is a 5 tube AM radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(2) PM 4" speakers. Cabinet color is Chestnut Brown. Westinghouse models H-705T5 and H706T5 use the same chassis and schematic, difference being the cabinet color.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Literature/Schematics (1)

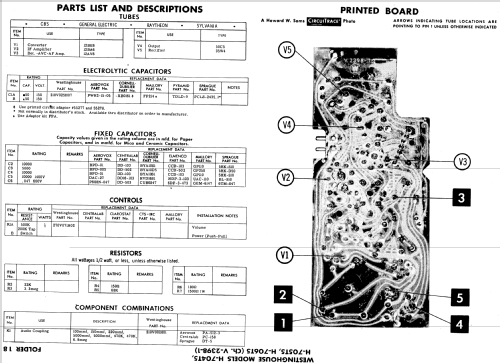

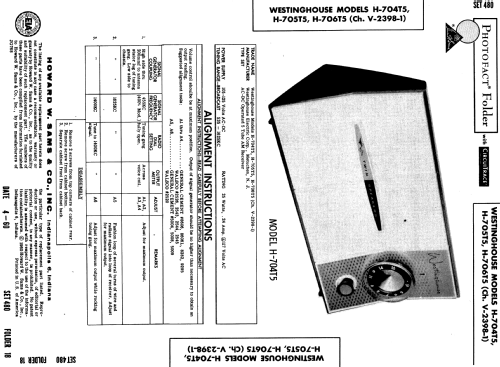

• Photofact Folder, Howard W. SAMS (Set 480 folder 18 date 4-60)

• Literature/Schematics (2)
• - - Manufacturers Literature (Westinghouse Datasheet RM4491)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
