H-705T5 Ch= V-2398-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1959

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
78889

- alternative name: Westinghouse El. Int.

Schematics

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1198311) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1198312) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1198313) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1198314) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 186233) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 541582) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 541583) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 541584) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 541586) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (3)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1409829) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 858324) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1198310) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)
Picture from Westinghouse datasheet

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1409830) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1409831) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 1409832) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524232) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524233) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524234) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524235) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524236) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524237) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524238) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524239) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524240) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524241) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524242) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524243) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2524244) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (1)

H-705T5 Ch= V-2398-1; Westinghouse El. & (ID = 2822136) Radio — Westinghouse El. & H-705T5 Ch= V-2398-1 (2)
RECONSTRUCTED LABEL

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12BE6 12BA6 12AV6 50C5 35W4

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
AC/DC-set / 105-120 Volt

Loudspeaker
2 Loudspeakers / Ø 4 inch = 10.2 cm

Power out
0.9 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: H-705T5 Ch= V-2398-1 - Westinghouse El. & Mfg. Co. -

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Notes

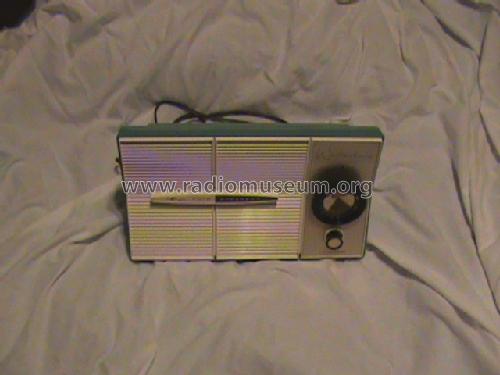

The Westinghouse model H-705T5 is a 5 tube AM radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(2) PM 4" speakers. Cabinet color is Turquois. Westinghouse models H-704T5 and H706T5 use the same chassis and schematic, difference being the cabinet color.

Circuit diagram reference

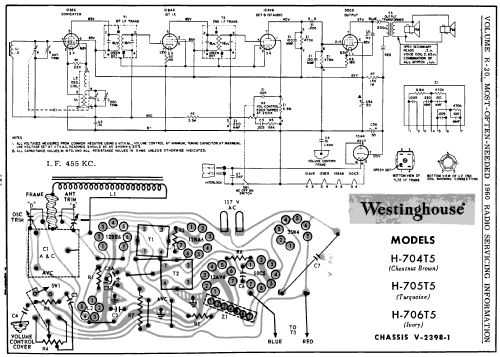

Beitman Radio Diagrams Vol. 20, 1960

Literature/Schematics (1)

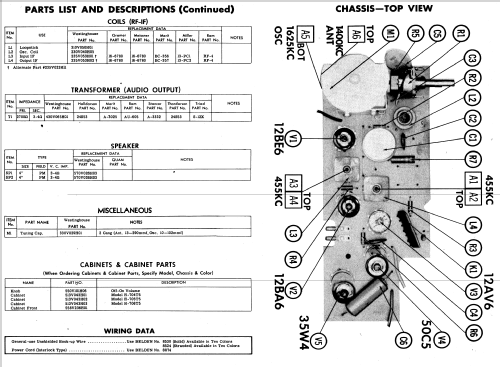

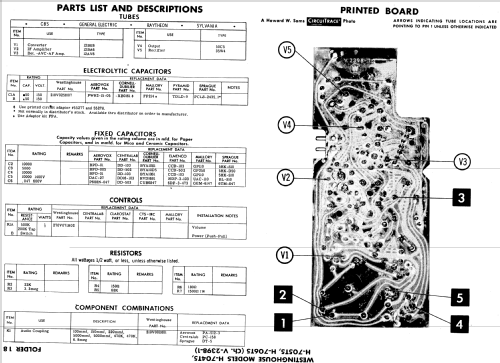

Photofact Folder, Howard W. SAMS (Set 480 folder 18 date 4-60)

Literature/Schematics (2)

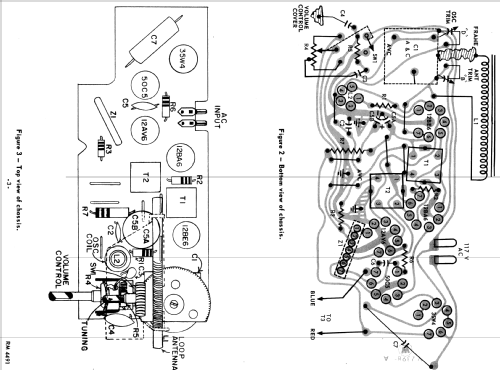

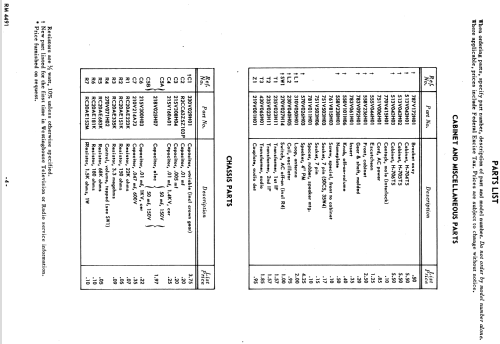

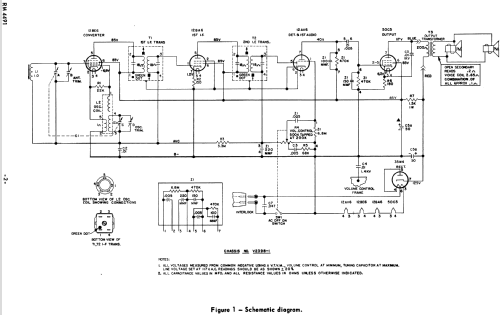

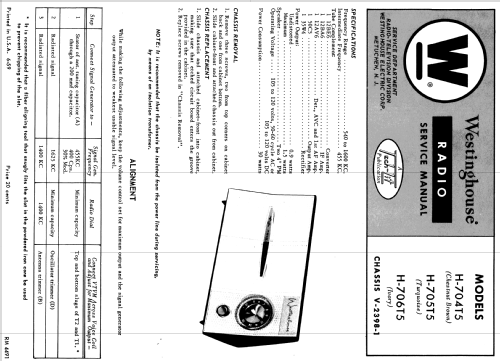

- - Manufacturers Literature (Westinghouse Datasheet RM4491)

Author
Model page created by Trev Levick. See "Data change" for further contributors.
