• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78908

• • alternative name: Westinghouse El. Int.

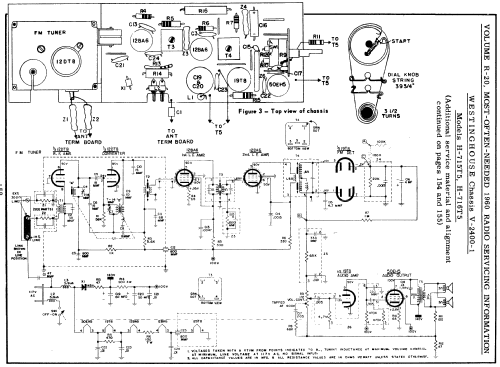

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12DT8 12BA6 12BA6 19T8 50EH5

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-715T5 Ch= V-2400-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The Westinghouse model H-715T5 is a 5 tube FM radio. FM Tuning Range: 88 to 108 MHz. Has Qty(2) PM 4" speakers. Cabinet color is Chestnut Brown/White. Westinghouse model H-716T5 uses the same chassis and schematic, difference being cabinet color.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 490 folder 18 date 6-60)

• Literature/Schematics (2)
• - - Manufacturers Literature (Westinghouse Datasheet RM4503)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
