• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86191

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

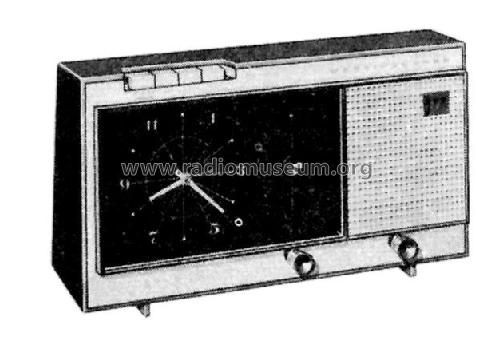

• Model: H-718T5A Ch= V-2401-3 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• The Westinghouse model H-718T5A is a 5 tube AM Clock radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(1) PM 4" speaker. Cabinet color is Turquoise/White. Westinghouse models H-719T5A and H-720T5A use the same chassis and schematic.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 21, 1961

• Literature/Schematics (1)
• - - Manufacturers Literature (Westinghouse Datasheet RA5013)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
