H-725T20 Ch= V-2220-2

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1952

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 216920

• • alternative name: Westinghouse El. Int.

• Picture
• Schematics

Previous Next

Previous Next

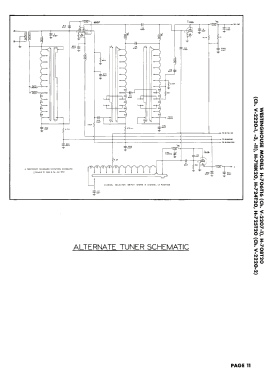

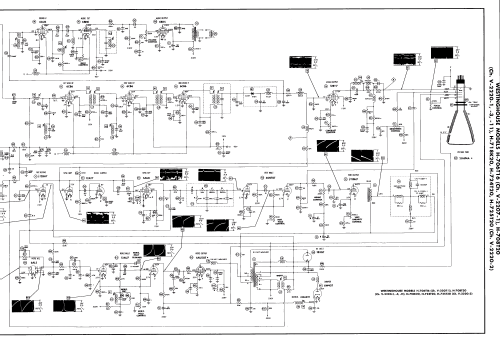

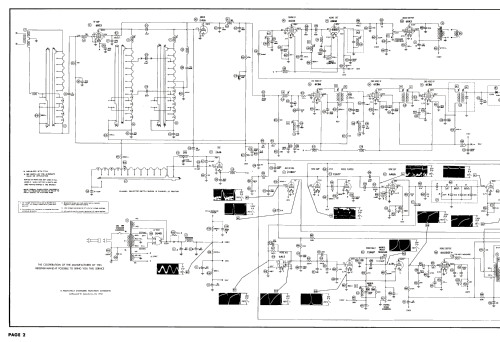

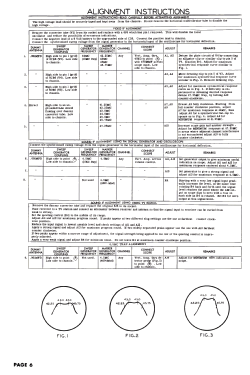

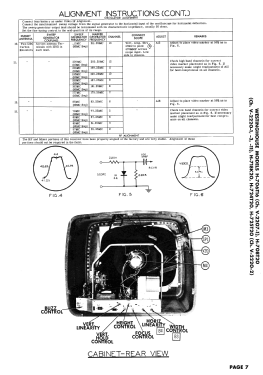

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• 6BZ7 or 6BQ7 6J6 6CB6 6CB6 6CB6 12BY7 6AU6 6BN6 6BK5 12BH7 6AU6 6AL5 12AT7 6SN7GT 12AU7 6AV5GT or 6AU5GT 6W4GT 1B3GT 5U4G 20HP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 1.8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H-725T20 Ch= V-2220-2 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• The Westinghouse H-725T20 is a 20" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis V-2220-2 and picture tube 20HP4A. Cabinet is Mahogany. For service information and schematics on this model, refer to Westinghouse model H-708T20 (See Supplements 1 and 2). This model is also available using chassis V-2220-4.

• Literature/Schematics (1)

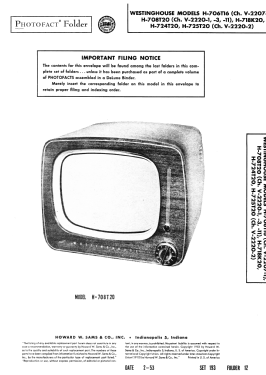

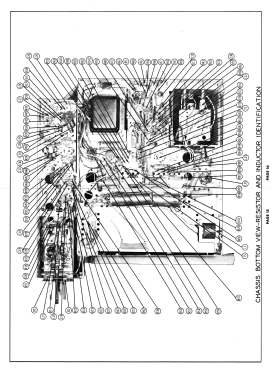

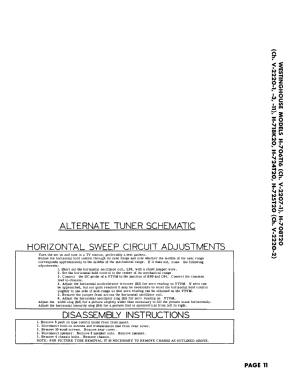

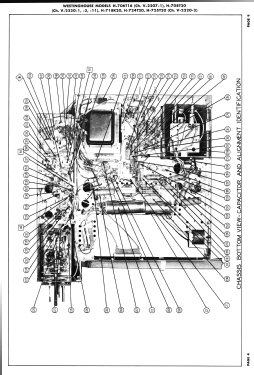

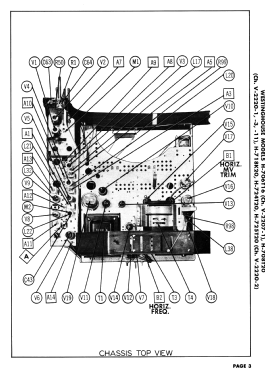

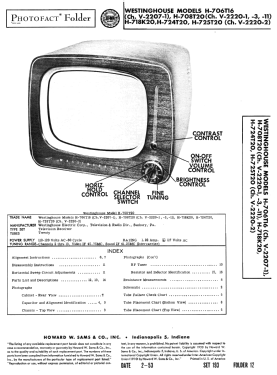

• - - Manufacturers Literature (Westinghouse Datasheets RM3318, RM3305, RM3316, RM3325)
