H-75AC2C Ch= V-2508-5
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1963
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 216913
-
- alternative name: Westinghouse El. Int.

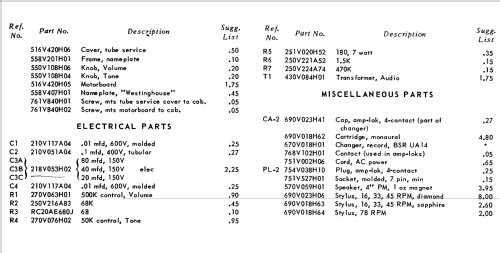

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: H-75AC2C Ch= V-2508-5 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Westinghouse model H-75AC2C is an AC operated Mono 2 tube portable phono amplifier and 4 speed Record Changer. Has Qty(1) PM 4" speaker. Cabinet color is Metallic Mocha. Uses Record Changer 670V025H03, with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-75AC1C uses the same chassis and schematic, the difference being cabinet color.
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Datasheet PH6051)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
