H-762N7A Ch= V-2407-3
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 215765
-
- alternative name: Westinghouse El. Int.

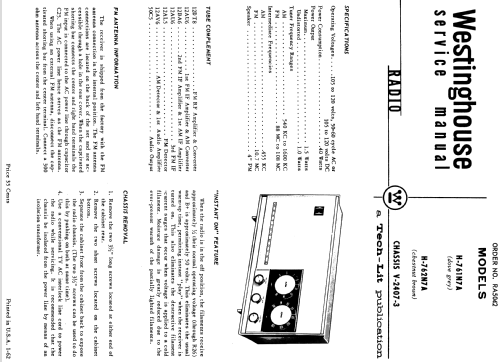

Picture from Westinghouse datasheet

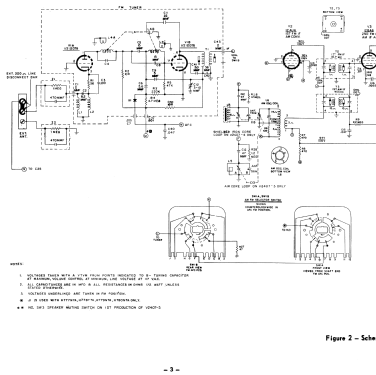

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / Either AC 50 to 60 cycles, 105 to 120V or DC 105 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: H-762N7A Ch= V-2407-3 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
The Westinghouse model H-762N7A is an AC/DC operated 7 tube AM/FM radio. AM Tuning Range: 540 to 1600 kHz. FM Tuning Range: 88 to 108 MHz.Has Qty(1) PM 4" speaker. Cabinet color is Chestnut Brown. Westinghouse model H-761N7A uses the same chassis and schematic, difference being cabinet color (Dove Gray).
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Datasheet RA5042)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
