H-772KU21 Ch= V-2243-4

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1953

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
218227

- alternative name: Westinghouse El. Int.

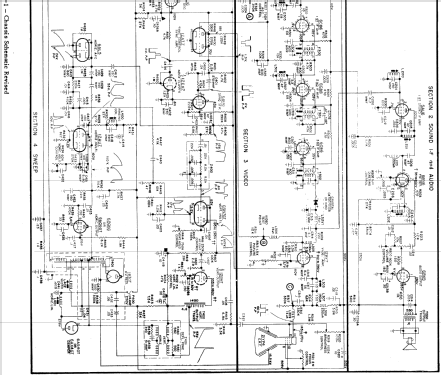

Schematics

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230598) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230599) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230600) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230601) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230602) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230603) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230604) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230605) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230606) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230608) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

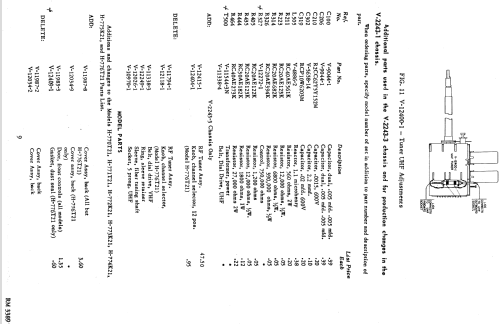

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230609) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230610) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230611) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230612) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230613) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230614) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230615) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230616) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230617) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230618) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230619) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230620) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230621) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230622) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230623) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230624) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230625) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230626) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230627) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1230628) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (3)

H-772KU21 Ch= V-2243-4; Westinghouse El. & (ID = 1228093) Television — Westinghouse El. & H-772KU21 Ch= V-2243-4 (2)
Picture from Westinghouse datasheet

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
23

Valves / Tubes
6BZ7 or 6BQ7A 6AF4 or 6T4 6X8 6CB6 6CB6 6CB6 12BY7 6AU6 6BN6 6BK5 12AT7 6AU6 12BH7 6AU6 6SN7GT 6AL5 12AU7 6BQ6GT or 6BQ6G 6AS4GT or 6AX4GT 1B3GT 5U4G 5U4G 21YP4

Main principle
Superhet with RF-stage

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Power type and voltage
Alternating Current supply (AC) / 105-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

Power out
2.5 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: H-772KU21 Ch= V-2243-4 - Westinghouse El. & Mfg. Co. -

Shape
Console with any shape - in general

Notes
The Westinghouse H-772KU21 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis V-2243-4, VHF/UHF tuner V-12400-1, UHF tuner H-804 and picture tube 21YP4. UHF H-802 plug-in receptors can also be used for UHF reception in the V-2243-4 chassis. Cabinet is Mahogany.

Literature/Schematics (1)
- - Manufacturers Literature (Westinghouse Datasheets RM3362 RM3389 RM3378 RM3388)
