H-799P7GP Ch= V-2403-4

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 88816
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x AA 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
  • Power out
  • 0.11 W (0.17 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: H-799P7GP Ch= V-2403-4 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.5 x 4.5 x 1.13 inch / 64 x 114 x 29 mm
  • Notes
  • The Westinghouse model H-799P7GP is a battery operated 7 transistor AM radio. The "GP" in the model number stands for "Gift Pack", which included the radio, a carrying case, earphone and batteries. AM Tuning Range: 540 to 1600 kHz. Has Qty(1) PM 2" speaker. Uses Qty(2) 1.5V "A" batteries. Has earphone jack that disconnects the speaker for private listening. Cabinet color is Blue/Gold. Westinghouse models H-798P7, H-798P7GP and H-799P7 use the same chassis and schematic.

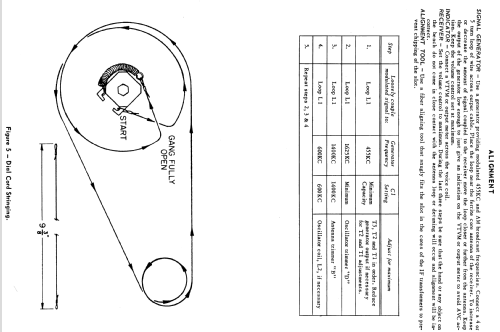

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet RA5034)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
