H-79ACS1 Ch= V-2507-12

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 88972
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-79ACS1 Ch= V-2507-12 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

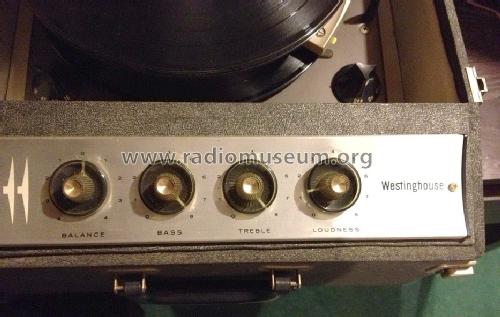

  • The Westinghouse model H-79ACS1 is an AC operated 3 tube portable stereo phono amplifier and 4 speed Record Changer. Has Qty(2) Elliptical PM 6" x 9" speakers. Cabinet color is Antique Charcoal. Has Selenium Rectifier. Uses Record Changer 670V012H04, with speeds of 16, 33, 45 and 78 RPM. Westinghouse model H-79ACS2 uses the same chassis and schematic, the difference being cabinet color.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet PH6017)
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
