H-802 Ch= V11900-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 219209
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 6AF4
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: H-802 Ch= V11900-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Chassis only or for «building in»
  • Notes

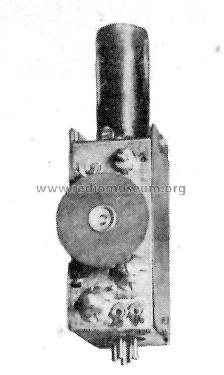

  • The Westinghouse H-802 is a channel specific UHF Television Receptor (tuner) designed for use with Westinghouse television receivers that contain specific provisions for its use. The H-802 receptor marked V-11900-1 can be tuned to US standard channels 14 thru 29. Obtains power from main TV chassis. This tuner is used in various Westinghouse 17", 21" and 27" TV models.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet RM 3339)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
