H-803-5 Ch= V-11613-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1953
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 217776
    • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 6J6
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: H-803-5 Ch= V-11613-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Chassis only or for «building in»
  • Notes

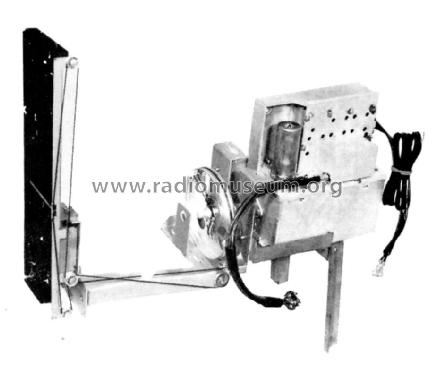

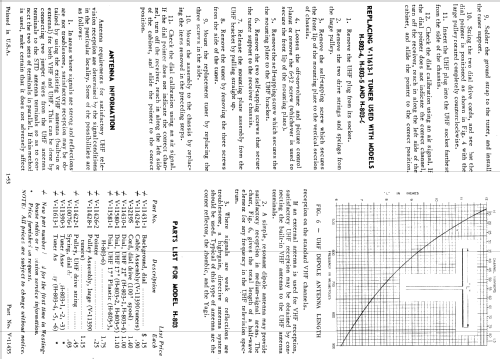

  • The Westinghouse H-803-5 is an all channel UHF Television tuner with US standard channels 14 thru 83. Uses chassis V-11613-1 and obtains power from main TV chassis. This tuner is used in various Westinghouse 17" TV models (Except for plastic cabinets) whose chassis contains the provisions for its use.
