• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90449

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / Either AC: 50 to 60Hz, 105 to 120V or DC: 105 to 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (1.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-832T5 Ch= V-2424-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The Westinghouse H-832T5 is an AC/DC operated 5 tube BC band receiver.  The BC band frequency tuning range is 540 to 1600kHz.  Has internal ferrite-core antenna.

  The following family of models use the same V-2424 family of chassis:

  Model	Chassis	Clock Radio	Cabinet Colors
  H-830T5	V-2424-1	No	Charcoal/Charcoal
  H-831T5	V-2424-1	No	Charcoal/Charcoal
  H-832T5	V-2424-1	No	Charcoal/Charcoal
  H-835L5	V-2424-2	Yes	Oxford/White
  H-837L5	V-2424-2	Yes	Oxford/White
  H-838L5	V-2424-2	Yes	Oxford/White
  H-844T5	V-2424-3	No	White/Beige
  H-845T5	V-2424-3	No	Charcoal/White

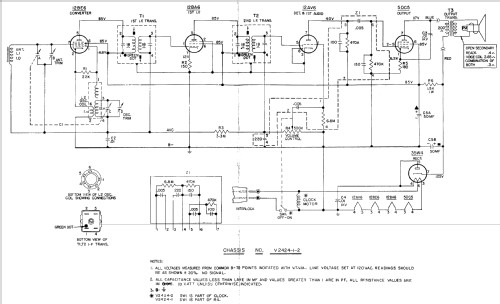

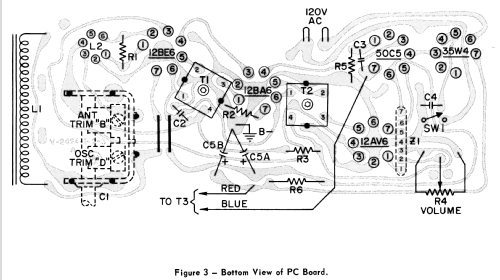

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 23, 1963

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 23, 1963 (Page 169)

• Literature/Schematics (2)
• - - Manufacturers Literature (Westinghouse Service Manual RA5056 Dated 8-62)

• Literature/Schematics (3)
• Photofact Folder, Howard W. SAMS (Set 659, folder 12 dated 10-63)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
