H-84ACR1B Ch= V-2518-1

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data
Forum
Pictures
Collections

  • Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 216072
    • alternative name: Westinghouse El. Int.

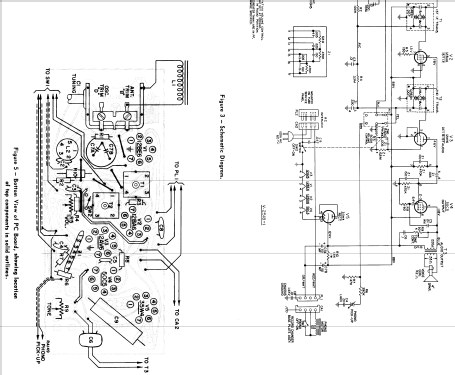

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: H-84ACR1B Ch= V-2518-1 - Westinghouse El. & Mfg. Co. -
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • The Westinghouse model H-84ACR1B is an AC operated 5 tube portable AM receiver with mono phono amplifier and 4 speed Record Changer. Has Qty(1) PM 4" speaker. Uses Record Changer 670V025H03, with speeds of 16, 33, 45 and 78 RPM.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Westinghouse Datasheet PH6057)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
