H-868TU21 Ch= V-2322
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1954 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 220409
-
- alternative name: Westinghouse El. Int.
Picture from Westinghouse datasheet

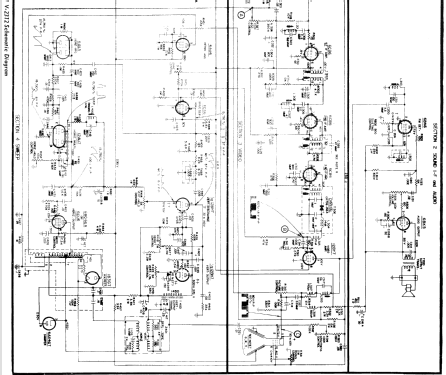

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6BZ7 or 6BQ7A 6U8 6CB6 6CB6 6CB6 12BY7 6BN6 6BK5 6AU6 6CS6 12BH7 6AL5 12AU7 6BQ6GA or 6CU6 6AX4GT 1B3GT 5U4GA or 5U4GB 21YP4
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Power out
- 1.25 W (unknown quality)
- from Radiomuseum.org
- Model: H-868TU21 Ch= V-2322 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- The Westinghouse H-868TU21 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis V-2322 and picture tube 21YP4. Cabinet is Mahogany. For service information, refer to Westinghouse chassis model V-2322 service notes and supplementary information.
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Datasheets RM4071 RM4069)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 281 Folder 10)
- Literature/Schematics (3)
- Photofact Folder, Howard W. SAMS (Set 305 Folder 1 Production Changes Bulletin 143 dated 2-56)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
